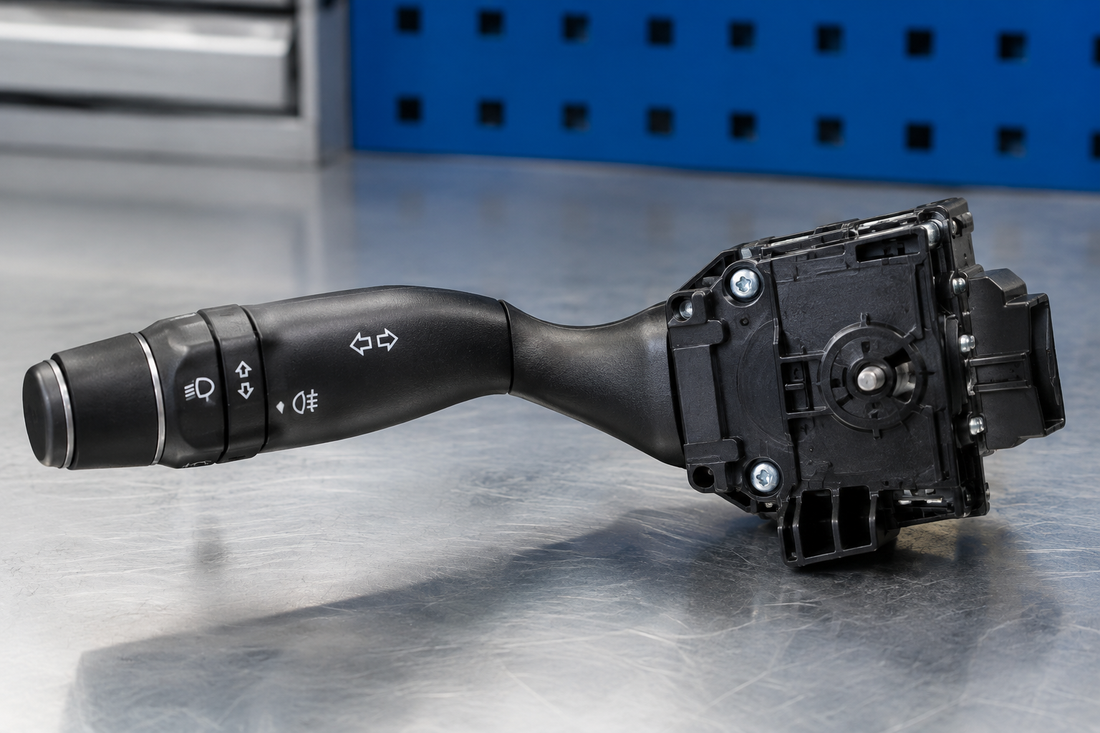

Turn Signal or Wiper Switch Dead? Multifunction Stalk Replacement
Share
Turn signals that stop clicking, high beams that will not hold, wipers that only work on HIGH — these symptoms almost always trace back to one part: the multifunction switch on the steering column. This guide covers how the stalk fails, how to tell it apart from a fuse, flasher or wiper-motor problem, and how to replace it yourself with a direct-fit OE replacement.
Why Multifunction Switch Stalks Fail
The stalk you bump for every lane change and every rain shower is not just a lever — it is a small electrical assembly hiding inside the steering column. Depending on the vehicle, one stalk carries turn signals, high/low beam selection, flash-to-pass, wipers, intermittent delay and the washer pump. All of those functions are switched by sliding copper contacts, a set of plastic detents and a cancelling tab that returns the lever after a turn.
That combination of high use and simple mechanical design is why the switch wears out long before the rest of the column does. The failures we see most often:
- Contact wear and carbon tracking. Every press arcs slightly across the internal contacts. After years of use, the contact surfaces pit and build up carbon, so a function becomes intermittent — working when cold, dead when hot, or working only if you push the stalk harder than you should.
- Mechanical breakage. The plastic detent or the self-cancelling tab snaps. The switch still connects electrically, but the lever will not latch, or the signal never cancels after a turn.
- Heat in the lighting circuit. High/low beam and daytime-running contacts carry real current. A corroded lamp socket, a wrong-wattage bulb or a failing relay pushes more load through the switch, and the plastic around the contacts discolours and fails.
- Liquid intrusion. Spilled coffee, a leaking windshield-washer line, or condensation on the column can reach the contacts and cause intermittent shorting or a dead stalk.
- Circuit problems that imitate a switch. A blown fuse, an unseated column connector, a bad ground or a tired flasher relay produce the exact same symptoms as a worn switch. This is why the diagnostic order below starts with the cheap stuff.
Symptoms, What They Usually Mean, and What to Check First
| What you notice | What it usually means | Check this first |
|---|---|---|
| Turn signals dead on both sides, but hazards still flash | The switch contacts feeding left and right are the one part both sides share — but a blown turn-signal fuse or a failed flasher acts the same way | Turn-signal and hazard fuses in both fuse boxes, then the flasher relay. Hazards working only proves the hazard path is alive |
| One side flashes, the other does not | A single-side switch contact, or the bulb/socket on that side | Move the bulb from the working side to the dead side. If it still does not flash, the fault is in the circuit or the switch |
| Signal works, but never cancels after the turn | Broken cancelling tab or worn detent inside the stalk | Confirm the lever has no mechanical click and does not return on its own — that is the switch, not the wiring |
| Signals flash much faster than normal (hyperflash) | A burned-out bulb, a corroded socket, or an LED retrofit with the wrong load | Replace the bulb and inspect the socket. Hyperflash from a bulb is not a switch fault |
| High beams will not hold on, or flash-to-pass does nothing | Dimmer contact inside the stalk, or the headlight circuit itself | Headlight fuses and relay, then the bulbs. Only then suspect the stalk |
| Wipers dead on every speed | Could be the switch, but a seized or failed wiper motor and a blown wiper fuse look identical | Feed the motor directly and confirm it runs before replacing the switch |
| Wipers work on HIGH only — no INT or LO | The intermittent-delay and low-speed contacts in the stalk, occasionally the wiper module | The switch is the most common cause. Rule out the module before buying parts |
| Wipers fine, washer will not spray | Washer button contact in the stalk, or a dead pump / clogged line | Test the pump on a direct 12V feed. A running pump means the button is the fault |
| Everything on the stalk dies at once | A shared connector or ground at the column rather than every contact failing together | Reseat the column connector and inspect the terminals before ordering anything |
A note on fault codes. The multifunction switch sits in the body and lighting circuits, so it normally does not set a powertrain (P) code — a dead turn signal will not put a check engine light on your dash. A higher-end scan tool may report body codes stored by the body control module when it sees an open or shorted lamp circuit, but a body code alone never proves the switch is the failed part: a corroded bulb socket or a chafed harness reports the same way. Use codes to point you at the circuit, then verify at the connector.
How to Replace a Multifunction Switch — Step by Step
- Disconnect the negative battery terminal first, and wait before you touch the column. Airbag and clockspring connectors live on the steering column. Never unplug them with the battery connected, and give the system time to discharge before you pull anything apart.
- Photograph the column and every connector before disassembly. Two minutes of pictures is what saves you when reconnecting three similar plugs.
- Remove the column shrouds. On most vehicles these are two or three screws from underneath, then the upper and lower covers separate.
- Check whether the steering wheel has to come off. On many vehicles the switch is accessible once the shrouds are off; on others the wheel must be removed first. If it does, use a proper steering-wheel puller — never hammer the shaft — and do not rotate the clockspring once the wheel is off.
- Unplug the switch connector and inspect the terminals. Look for melted plastic, brown heat marks, or green corrosion. If the connector is heat-damaged, a new switch alone will not fix the problem — the pigtail or the connector body has to be repaired too.
- Remove the retaining fasteners and slide the old stalk out. Set the new switch beside the old one and confirm the connector body, stalk length and detent positions match before installing.
- Install the new switch, engaging the cancelling cam correctly. Turn the stalk through its full travel by hand; the signal should click into place on each side.
- Reassemble the column, then reconnect the battery and test everything in one pass: left and right signals including self-cancelling, hazards, high beams, flash-to-pass, wiper INT / LO / HIGH, and the washer pump. Test before you reinstall the shrouds — it is much faster to re-open if something is off.
- If one function is still dead, do not assume the new switch is defective. Recheck the fuse for that circuit, then the column connector seating. New parts do fail, but a circuit fault is far more likely.
Before you tighten anything: VeloCore does not publish torque values, and steering column and steering-wheel fasteners have vehicle-specific specs — some are single-use. Take the torque figures and the tightening sequence from your vehicle's factory service information, not from a forum post. Fitment and function are what we guarantee; the numbers on those fasteners are the manufacturer's to specify.
Fitment: Combination Switch & Turn Signal Switch Replacements
The part numbers below come straight from our listing data. Always confirm against the OE number on your original switch, the connector shape, and your vehicle's build date before ordering.
| Vehicle | Notes | OE / interchange numbers | Part & price |
|---|---|---|---|
| Ford F-250 / F-350 / F-450 / F-550 Super Duty 2017–2022 Ford F-150 2015–2020 Ford F-650 / F-750 2021–2023 |
Multifunction stalk with windshield wiper switch and turn signal control | FL3Z-13K359-AA, FL3Z13K359AA, CBS2293 |
VeloCore Windshield Wiper Switch Multifunction Turn Signal Control FL3Z-13K359-AA $19.69 |
| Ford F-150 / F-250 / F-350 / F-450 Super Duty 2011–2013 | Multifunction blinker stalk | BC3Z-13K359-BA, SW-6874 |
VeloCore BC3Z-13K359-BA Turn Signal Wiper Switch SW-6874 $22.19 |
| Ford F-150 2005–2008 Lincoln Mark LT 2006–2008 |
Turn signal, wiper and dimmer combination lever; standard wiper delay, high and low beam control | 5L3Z-13K359-AAA |
VeloCore Turn Signal Wiper Switch 5L3Z-13K359-AAA $23.55 |
| Chevrolet Silverado / Tahoe 2003–2006 GMC Sierra / Yukon 2003–2006 Chevrolet Trailblazer, GMC Envoy, Cadillac Escalade 2002–2009 |
Multi-function combination turn signal switch | 12450067, D6299A, SW3792, CBS1149 |
VeloCore Multi-Function Combination Turn Signal Switch 12450067 $26.69 |
| Chevrolet Cobalt 2005–2010, HHR 2006–2011, Equinox 2007–2009 Pontiac G5 2007–2010 |
Turn signal / headlight dimmer lever — lighting functions only | 20940099, 15915857, D6254E |
VeloCore 20940099 Turn Signal Headlight Dimmer Switch Lever D6254E $15.55 |
| Chevrolet Malibu 2004–2012 Pontiac G6 2005–2011 Saturn Aura 2007–2009 |
Headlamp dimmer switch and blinker lever | D6253E, 20940369, SW8004 |
VeloCore Turn Signal Switch for Chevy Malibu / Pontiac G6 / Saturn Aura $15.25 |
FAQ
How do I tell whether it is the switch or the flasher relay?
Turn on the hazards. If the hazards flash normally but the turn signals do nothing on either side, the flasher and the lamps are working and the fault is upstream at the switch or its connector. If the hazards are also dead, start with the fuse and the flasher before you buy a switch.
Can I replace just the stalk, or do I need the whole assembly?
On most of the applications above the stalk is supplied as a complete switch assembly with the connector body attached, which is what you want — the wear is in the contacts inside the housing, so replacing only the lever would not fix anything. Match the OE number on your original part to the interchange numbers in the table.
My wipers only work on HIGH. Is that always the switch?
No, but it is the most common cause. The intermittent and low-speed functions are separate contact sets inside the stalk, and they typically fail before the high-speed contact. Confirm the wiper fuse is good and the motor runs when fed directly before replacing the switch.
Do I have to remove the steering wheel?
It depends on the vehicle. Some columns give access to the switch once the shrouds are off; others require the wheel to come off first. If the wheel has to come off, disconnect the negative battery cable and wait before touching any airbag or clockspring connector, and use a proper puller — never strike the steering shaft.
Will a failed multifunction switch trigger a check engine light?
Normally no. The switch is part of the body and lighting circuits, so it does not set the powertrain codes that light the check engine lamp. A scan tool may show body-module codes for a lamp circuit fault, but those point to the circuit — not necessarily to the switch — so verify at the connector before replacing parts.
Fitment Guarantee — Confirm Before You Buy
Every switch listed above is a direct-fit OE replacement, and we stand behind the fitment: send us your VIN or the OE number stamped on your original switch and our team will confirm the correct part before you order. If the part we ship does not fit your vehicle as listed, we make it right — that is the Fitment Guarantee.
