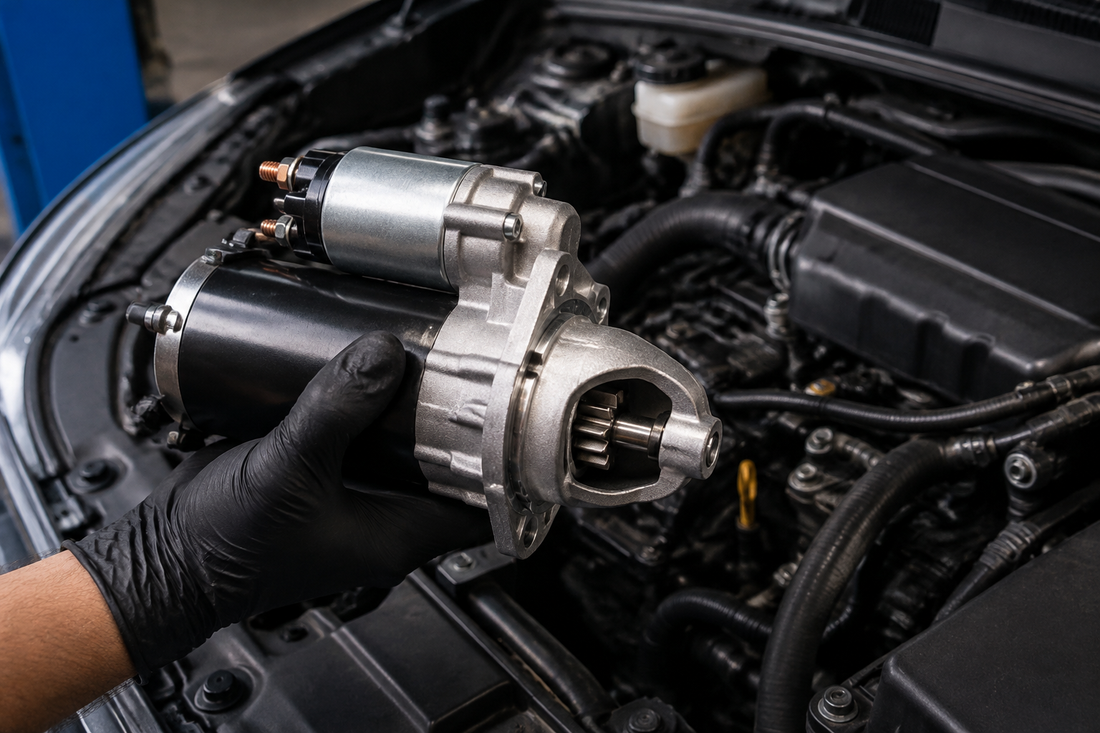

What the Starter Motor Does
The starter motor is a high-torque electric motor that spins the engine long enough for combustion to take over. When you turn the key or press start, the battery sends current through the starter relay to the solenoid, which kicks the drive gear into the flywheel ring gear and cranks the engine. It is a brutal job — hundreds of amps and sudden mechanical shock — so starters fail in predictable ways.
- Brushes and commutator wear. The carbon brushes lose contact after years of arcing, so the motor spins weakly or not at all.
- Solenoid failure. The solenoid engages the gear and passes current; when its contacts burn, you get a click and no crank.
- Drive gear (Bendix) failure. The one-way clutch or pinion sticks, causing grinding or a no-crank.
- Heat soak. On transverse V6 / I4 engines the starter sits near the exhaust; after a hot shutdown it drags until it cools.
Symptoms of a Failing Starter
| Symptom | What you hear / see | Most common cause |
|---|---|---|
| Single click, no crank | Loud click from the starter, engine does not turn | Dead solenoid or blown fusible link |
| Slow or weak crank | Engine turns over sluggishly, sometimes starts | Worn brushes, weak motor, or low battery |
| Grinding on start | Metal-on-metal grind when cranking | Damaged drive gear or ring gear teeth |
| Intermittent no-start when hot | Fine when cold, fails after a hot drive | Heat-soaked starter or swollen bushings |
| Nothing at all | No click, no crank, lights still work | Bad relay, neutral-safety switch, or open circuit |
Before blaming the starter, rule out the battery and the connections — a weak battery or a corroded ground produces the same "click no start" as a dead starter.
What the Codes Mean
| Code | Meaning | Most common cause |
|---|---|---|
| P0615 | Starter Relay Circuit Malfunction | Relay, wiring, or control module fault |
| P0616 | Starter Relay Control Circuit Low | Shorted / low-voltage control wire to relay |
| P0617 | Starter Relay Control Circuit High | Open or short-to-power on the control circuit |
These are generic public OBD-II definitions. P061x points at the starter control circuit — the relay, wiring, or module — not necessarily the motor itself. Confirm with a voltage drop test at the starter before ordering.
How to Replace a Starter Motor
This is a driveway job on most front-engine cars and trucks if you can reach the starter and have a socket set. Always work safe around a live battery and a heavy motor.
- Disconnect the negative battery terminal first — the starter terminal is always hot and will arc violently if it shorts.
- Raise and support the vehicle if the starter is underneath; on many transverse engines it is accessible from the top after removing the intake or a cover.
- Unplug the small signal connector and remove the main battery cable nut from the solenoid post.
- Unbolt the starter (usually two bolts) and lower it clear. Note the shim position if your application uses one.
- Transfer the shim / heat shield to the new unit, then bolt it up and torque to spec.
- Reconnect the cables, reconnect the battery, and verify a clean, fast crank with no grind.
We do not publish a single torque figure: starter-bolt torque differs by engine and access. Look up the spec for your application and torque to that value.
VeloCore Direct-Fit Starter Motors
Each starter below is a direct-fit replacement matched to the original OE number. Confirm your engine and year before ordering — use the fitment check or your VIN.
| Application | OE Reference | VeloCore Starter | Price |
|---|---|---|---|
| Honda Accord / CR-V / Civic 2.0L–2.4L | 10914 | VeloCore 10914 Starter Motor | $73.99 |
| Chevy Silverado 1500 / Suburban / Tahoe, Cadillac Escalade, GMC Sierra / Yukon 4.3L–6.2L | 12655055 / M000T24072 | VeloCore 10910 Starter Motor | $54.19 |
Frequently Asked Questions
Is it the starter or just a dead battery?
If the lights and radio work but you get a single click, the battery is probably fine and the starter or its circuit is the suspect. A voltage-drop test at the starter confirms it.
Can I hit the starter to make it work?
Tapping a sticking starter may get you home once, but it is a temporary fix and risks damaging the ring gear. Replace it.
Why does it only fail when the engine is hot?
Heat soak swells the bushings and increases drag right after a drive. If it cranks fine cold but not hot, the starter is on its way out.
Will a new starter clear P0615 / P0616?
P061x points at the starter control circuit — relay, wiring, or module — not the motor. Fix the circuit first; a new starter will not clear a wiring fault.
Fitment Guarantee
Ordering the wrong starter is the #1 reason a no-start diagnosis stalls. Every VeloCore starter is sold against its OE number and confirmed fitment list. If it is not a match for your VIN, our fitment team will catch it before it ships — and if a verified part ever fails to fit, we make it right. Check your fitment with us before you buy.
