Why Power Steering Pumps Fail

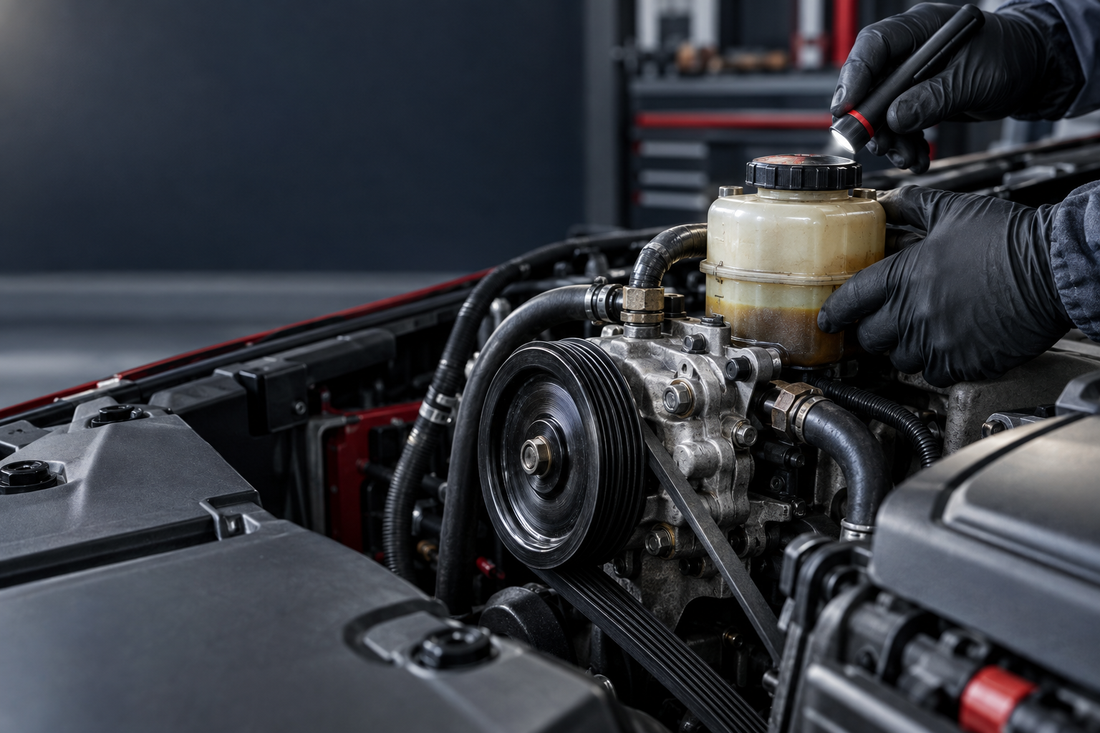

The hydraulic power steering pump pushes pressurized fluid to the steering rack so you can turn the wheel with one hand at parking speeds. On most North-American cars and light trucks it is a belt-driven vane or gerotor pump. They wear out for a few predictable reasons:
- Seal hardening and fluid leaks. The shaft and high-pressure seals dry out with heat cycles. Once they weep, air gets pulled into the loop and the fluid foams.
- Contaminated fluid. Old ATF/dexron or manufacturer-specific PSF picks up metal and rubber debris, which scores the vanes and the cam ring.
- Bearing or pulley failure. A worn bearing growls; a loose or glazed serpentine belt slips and whines under load.
- Overheated system. Restricted cooler lines or a clogged reservoir strainer raise pressure until the relief valve chatters.
Most pumps do not die suddenly — they announce themselves with noise weeks before the steering gets heavy. Catching it early protects the rack, which is far more expensive.
Symptoms of a Failing Power Steering Pump
| Symptom | What you hear / feel | Most common cause |
|---|---|---|
| Whining on cold start or when turning | High-pitched whine that rises with RPM | Low / aerated fluid, failing vanes |
| Stiff or heavy steering | Wheel needs both hands at low speed | Loss of pressure from worn pump |
| Foamy or low reservoir | Bubbles on the dipstick, frequent top-ups | Intake seal leak drawing air |
| Groaning at idle | Low-frequency groan, worse when warm | Relief valve / worn cam ring |
| Power steering warning light | Dashboard PS or EPS icon | Pressure sensor circuit — see codes below |
On vehicles with an electronic power-steering pressure sensor, a failing pump or a leak can set a diagnostic trouble code. The two generic OBD-II codes most often tied to the pressure sensor circuit are:
| Code | Meaning | Most common cause |
|---|---|---|
| P0550 | Power Steering Pressure Sensor Circuit Malfunction | Sensor, wiring, or very low pressure |
| P0551 | Power Steering Pressure Sensor Circuit Range/Performance | Erratic signal from the PS pressure sensor |
These are generic public OBD-II definitions. Always confirm the exact cause with a vehicle-specific service manual and a live pressure test before ordering parts — a P055x can also come from sensor wiring alone.
How to Replace a Power Steering Pump
This is a driveway-level job on most trucks and V6 cars if you are comfortable with a serpentine belt and line wrenches. Always work on a cold engine and relieve line pressure first.
- Disconnect the negative battery terminal and relieve any residual pressure at the cap.
- Remove the serpentine belt from the pump pulley using a breaker bar on the tensioner. Note the routing for reassembly.
- Position a drain pan and disconnect the high-pressure line and the return hose. Catch the old fluid — it is hazardous waste; dispose of it properly.
- Unbolt the pump from its bracket and lift it clear. On some Honda/Acura units the pump and pulley come as a set; on others you transfer the pulley with a puller/installer.
- Transfer the pulley only if your replacement does not include one. Use a proper pulley installer — hammering cracks the hub.
- Mount the new pump, reconnect the lines with fresh seals, and reinstall the belt to the original routing.
- Bleed the system. Refill with the fluid specified in the vehicle service information, then crack a line or use the bleed procedure in the manual while turning the wheel lock-to-lock (engine off) until no air bubbles remain.
- Start and verify. Top up, run to operating temperature, and re-check for leaks and noise.
We intentionally do not publish a single torque figure here: pulley, bracket, and line-nut torque values differ by engine and model year. Look up the required torque and sequence in the vehicle's factory service information and torque to that spec.
VeloCore Direct-Fit Power Steering Pumps
Every pump below is a direct-fit replacement with the pulley included where noted, matched to the original OE number. Confirm your exact year, trim, and engine before ordering — use the fitment check or your VIN.
| Vehicle / Application | OE Reference | VeloCore Pump | Price |
|---|---|---|---|
| Honda CR-V / Civic 2.0L–2.4L | 56110-PNB-A03 | VeloCore 21-5419 Pump w/ Pulley | $62.19 |
| Honda Accord | 56110-RAA-A01 | VeloCore 56110-RAA-A01 Pump | $54.99 |
| Honda Odyssey | 56110-RGL-A03 | VeloCore 21-5442 Pump | $61.99 |
| Dodge Ram (incl. pulley & reservoir) | 20-70269 / 96-70269 | VeloCore 55-7154 Pump Assembly | $71.99 |
| GM 3.6L (Chevy / GMC / Cadillac) | 20-2403 | VeloCore 3.6L Pump w/ Pulley | $54.99 |
Frequently Asked Questions
Can I just add fluid instead of replacing the pump?
Only if the leak is external and minor. Once the pump itself whines or the steering is heavy, adding fluid masks the symptom and the rack can be damaged by aerated, low-pressure fluid. Replace the pump.
How long does a power steering pump last?
Typically 80,000–150,000 miles, but contaminated or neglected fluid shortens that. Flushing the fluid every 50,000 miles is the cheapest insurance.
Do I need to replace the pulley too?
Only if it is damaged. Most VeloCore pumps ship with the pulley included; if yours does not, transfer the old one with a pulley installer — never press it on with a hammer.
Will a new pump fix a P0550 / P0551 code?
Not always. P055x points at the pressure-sensor circuit, which may be the sensor or its wiring rather than the pump. Verify the sensor and harness before assuming the pump is the cause.
Fitment Guarantee
Ordering the wrong part is the #1 reason a DIY job stalls. Every VeloCore pump is sold against its OE number and confirmed fitment list. If it is not a match for your VIN, our fitment team will catch it before it ships — and if a verified part ever fails to fit, we make it right. Check your fitment with us before you buy.
