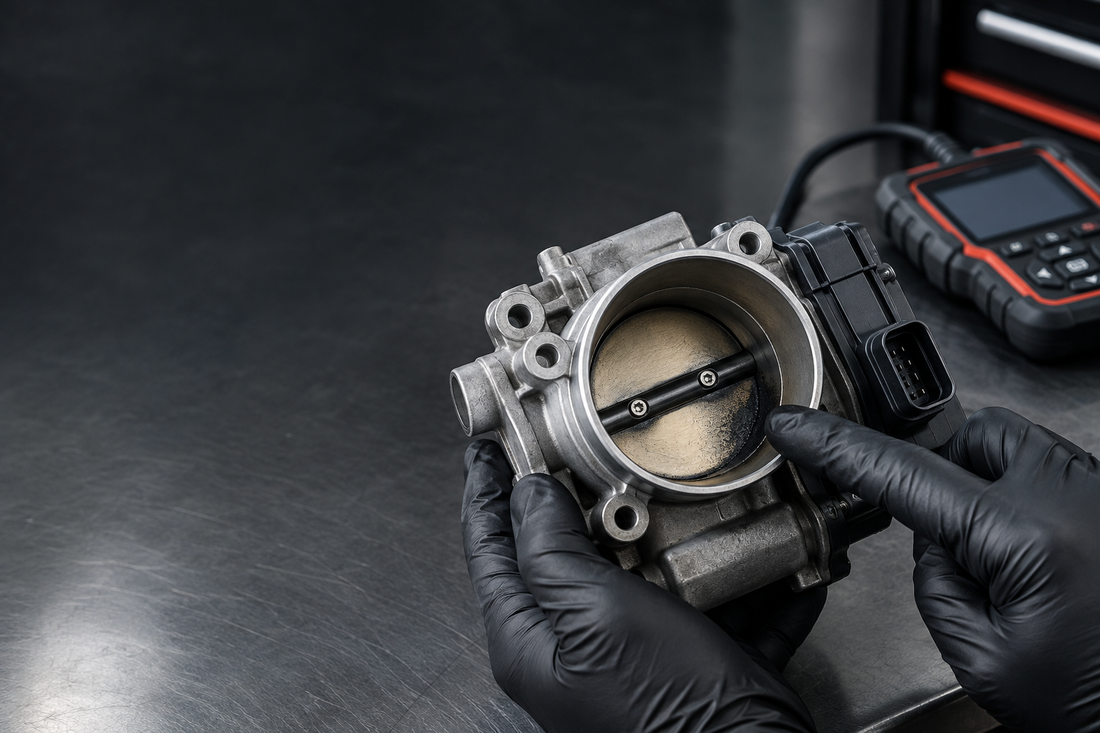

Throttle Body Failure: P0121/P2135 Symptoms and Replacement Guide
Share
Why the throttle body matters (and why it fails)
Your throttle body is the gatekeeper between the air filter and the engine. Instead of a cable, most vehicles built after 2004 use an electronic throttle body (ETB) — a motor-driven butterfly plate controlled by the ECM. It has to respond to your right foot within milliseconds, and it has to do it several hundred times per drive cycle.
Two things kill throttle bodies: carbon buildup on the bore and plate, and worn internal position sensors / motor gears. The first causes rough idle and hesitation. The second sets a check engine light and drops you into limp mode. Both are common between 80,000 and 150,000 miles — and both are fixable in a driveway.
Symptoms: is it the throttle body?
- Rough or hunting idle that smooths out slightly above 1,500 rpm
- Hesitation or a dead spot when you first press the pedal from a stop
- Limp mode / reduced power with the wrench light on
- Stalling when coming to a stop or when the A/C compressor engages
- Poor fuel economy — a lazy throttle plate forces the ECM to over-fuel
- An unexpected high idle (1,500–2,000 rpm) at startup that won't settle
Misfire codes are a different animal — if you are chasing P0300–P0304, that points at ignition coils or plugs rather than the throttle body, and we cover that in a separate guide.
Codes you are most likely to see
| Code | Meaning | Most common cause |
|---|---|---|
| P2135 | Throttle position sensor 1/2 correlation | Failed internal TPS tracks — replace the unit |
| P0121 | Throttle position sensor range/performance | Carbon buildup on the bore, or worn sensor |
| P0507 | Idle speed higher than expected | Vacuum leak at the throttle body gasket |
| P2101 | Throttle actuator control motor range | Stripped actuator gears — replace |
| P2111 / P2112 | Throttle stuck open / stuck closed | Carbon jam or failed motor |
Rule before you buy anything: clear the code and see if it returns within 2 drive cycles. A one-time P0121 during a cold snap is often a false positive. A P2135 that keeps coming back will not fix itself.
Step-by-step replacement (about 60–90 minutes)
- Disconnect the negative battery terminal. Wait 2 minutes so the ECM capacitors drain — this also lets the ECM relearn a clean idle afterwards.
- Remove the intake tube between the air box and the throttle body. Inspect it for cracks while it is off — a split boot is a hidden vacuum leak that mimics a bad throttle body.
- Unplug the electrical connector and the two coolant hoses if your throttle body is liquid-heated (common on Ford 5.4L and Chrysler 3.6L). Clamp the hoses first; expect a little coolant loss.
- Remove the 4 mounting bolts in a criss-cross pattern. Keep the old gasket — you want to compare it to the new one.
- Clean the mounting flange with a plastic scraper and throttle-body-safe cleaner. Do not use carb cleaner on the new unit's seals.
- Install the new throttle body with a fresh gasket, tighten in a criss-cross pattern to spec, torque in two stages.
- Reconnect, then do an idle relearn: start the engine and let it idle 3 minutes with all accessories off, then 3 minutes with A/C on. Drive gently for 10 miles before judging the idle.
Do not skip the relearn. Roughly a third of "my new throttle body idles wrong" complaints are simply an ECM that has not been through a relearn cycle yet.
Throttle bodies we stock — match your engine
Every unit below is a drop-in OE replacement with the same connector and calibration as the factory part. Fitment is verified by OE number — always cross-check against your VIN or the number on your original part.
| Vehicle | Engine | OE number | Part |
|---|---|---|---|
| Ford F-150 / Lincoln (2004–2014) | 5.4L V8 | 977-328 / AT4Z9E926A | VeloCore Electronic Throttle Body S20001 |
| Ford F-150 / Lincoln | 5.4L V8 (S20068) | 977-328 | VeloCore Throttle Body S20068 |
| Dodge Ram 1500/2500/3500 (2005–2012) | 5.7L Hemi | S20042 | VeloCore Throttle Body S20042 |
| Dodge / Jeep (2007–2011) | 3.7L / 3.8L V6 | 977-785 | VeloCore Throttle Body 977-785 |
| Nissan Altima / Rogue / Sentra (2007–2013) | 2.5L L4 | S20054 | VeloCore Throttle Body S20054 |
| Chevy / GMC / Buick (2008–2011) | 2.4L L4 | S20015 | VeloCore Throttle Body S20015 |
Browse all VeloCore OE replacement parts →
FAQ
Can I just clean my throttle body instead of replacing it?
Yes — if the only symptom is a slightly rough idle and you have P0121 but no P2135/P2101. Clean the bore and both sides of the plate with throttle-body cleaner and a lint-free cloth, then do the relearn. If the code returns, the sensor tracks are worn and cleaning will not help.
Do I need a dealer to relearn the throttle body?
Not on most 2004–2014 domestic and Japanese platforms. The drive-cycle relearn above works on the F-150, Ram, Altima and Silverado families. A handful of European platforms need a scan tool — check your service manual.
Will a bad throttle body damage my engine?
Not directly, but the limp-mode fuel trims it causes can foul spark plugs and wash cylinder walls over time. Deal with it within a few hundred miles, not a few thousand.
Does the throttle body need a new gasket?
Always use a new gasket. Reusing a compressed gasket is the number-one cause of a P0507 vacuum leak after replacement. Gaskets are included with our kits where noted.
Still not sure which unit fits your truck? Send us your year, make, model and the OE number stamped on your original throttle body — we will confirm fitment before you order, and every VeloCore throttle body carries our Fitment Guarantee: if it does not fit or does not clear the code, we make it right.
